GUANGDONG SHENZHEN YAXIN ELECTUONICS  KEEP SOLENOID

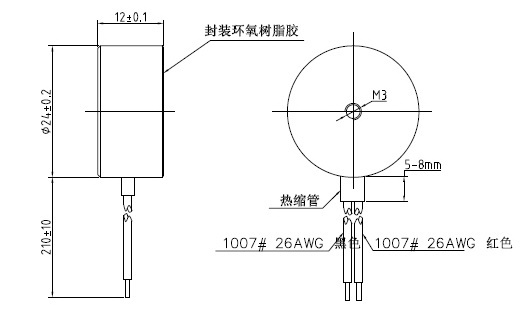

产品型号（PRODUCT PART NO.）：AKX2412L-12A6.8  (3)

5. 保持式吸盘电磁铁电气特性(ELECTRONICAL CHARACTERISTICS)

5-1 力量(FORCE)

自由状态释放电压：DC12V

0mm保持力：≥6.8kg

5-2 绝缘电阻: :线圈和框架间100M Q (OC500V 常规祖度/温度) 。

(INSULATION RESISTANCE: BETWEEN C01L AND FRAME OC500V NORMAL)

5-3 耐电压: 线固和1框架间AC1200V(50/60Hz) lSec( 10mA)无异常。

(DIELETRIC STRENGTH: BETWEEN COIL AND FRAME AC1200V(50/60Hz) lSec(BREAKDOWN CURRENT lOmA))

5-4 温升: :在额定电压DC12V ，线圈温升最大至65'C

(TEMPERATURE RISE:RATED VOLTAGE SUPPLY DC12V WHEN AMBIENT TEMPERATURE IS 20'C , COIL TEMPERATURE TO BE 65deg MAX.

5-5 寿命: 典型值为30万次（10%通电）

(LIFE:SUPPLY OC10V WHEN AMBIENT TEMPERATURE IS 20℃ . AND INTERMTTENTLY ENERGIZE THE DUTY USED OF 0.Sec ON, O.lSec OFF, MORE THAN 0.3 MILLION CYCLE TEST).

5-6电线与线圈的强度: 在任意方向下力量能承受O.5kgf拉力时无异常。

(COIL AND LEAD WIRE STRENGTH:THERE SHOULD BE NOT FRACTURED WHEN PULLING LEAD WIRE WITH RANDOM DIRECTION AT FORCE OF 0.5kgf)

5-7 工作温度、湿度: -5℃ - +55℃， 5%RH-85%RH

(OPERATING TEMP/HUMIDITY): -5℃ - +55℃， 5%RH-85%RH

 广东深圳亚欣电器保持式电磁铁：AKX2412L-12A6.8  (3)
详细参数查询请登陆：http://www.yaxinsz.com/ProductShow.asp?ID=618
