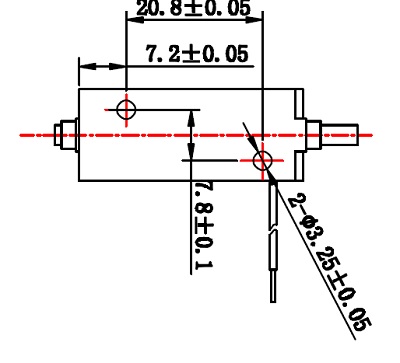

电动汽车充电枪双向保持电磁铁AKD0735S-12P10 (3)

电动汽车充电枪双向保持电磁铁AKD0735S-12P10  (3)
GUANGDONG SHENZHEN YAXIN ELECTUONICS TWO-WAY KEEPSOLENOID

5. 双向保持式电磁铁电气特性(ELECTRONICAL CHARACTERISTICS)

5-1 力量(FORCE)

最低启动电压:在200ms以内,DC9.5V启动正常

保持力RESIDUAL MAGNETISM:180gf

推力ATTRACTION FORCE:4mm>100gf

5-2 绝缘电阻: 线圈和框架间100MΩ (DC500V 常规温度/湿度)

(INSULATION RESISTANCE):  BETWEEN COIL AND FRAME DC500V NORMAL

TEMP/HUMIDITY, 100MCl MEGGER

5-3 耐电压: 线圈和框架间AC800V(50/60Hz)lMinAC800V(50/60Hz)lSec(击穿电流10mA)

(DIELECTRIC STRENGTH):  BETWEEN COIL AND FRAME AC500V(50/60Hz)lMin OR

AC1000V(50/60Hz)lSec(10mA)

5-4 温升: 在额定电12下,温升为65CMax (10%通电)

(TEMPERATURE RISE): AFTER DC12V APPLIED BY RESISTANCE METHOD 65 deg MAX

5-5 寿命: 典型值为30万次(10%通电)

(LIFE): REPETITIVE OPERATION FOR 0.3MILLION CYCLE(10%ED) at DC12V

5-6 端子强度: 当施加0.5kgf(任意方向)时,不允许脱落

(LEADWIRE STRENGTH): ADDING 0.5Kgf(RANDOM DIRECTION) NOT CHIP OFF

5-7 工作温度、湿度: -40- +55℃, 5%RH-85%RH

(OPERATING TEMP/HUMIDITY): -40- +55℃, 5%RH-85%RH

广东深圳广州佛山中山东莞双向保持式电磁铁:AKD0735S-12P10 (3)
详细参数查询请登陆:http://www.yaxinsz.com/showdeteal/?id=624
