旋转电磁铁: ABK2624L-24A100 (2)

GUANGDONG SHENZHEN YAXIN ELECTUONICS ROTATE SOLENOID

产品型号（PRODUCT PART NO.）：ABK2624L-24A100 (2)

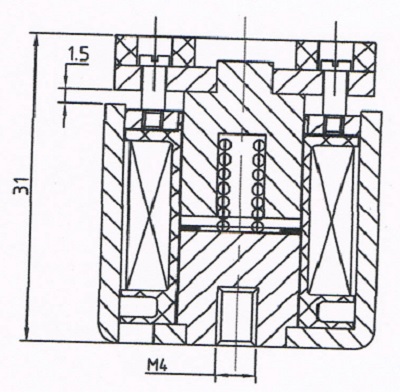

3. 旋转电磁铁外形图(AZ4921S-28A06 PLEARANCE)

3-1 外形尺寸:参照附图.图号: ABK2624L-24A100 (2)

(DIMENSION SEE THE ATTACHMENT. DRAWING NO. ABK2624L-24A100 (2))

外形尺寸：直径25.7mm，高度31mm，

（Dimensions: 25.7mm in diameter, height of 31mm,）

4. 旋转电磁铁额定参数(RATED PARAMETER)

4-1 电压(VOLTAGE): DC24V

4-2 电流(CURRENT): 0.24A(at DC24V 20℃)

4-3 功率(WATTAGE): 5.8W

4-4 直流电阻(DC RESISTANCE): 100Ω土5% (周围温度AMBIEMT TEMPERATURE 20℃ )

4-5 工作循环(DUTY CYCLE): 50%通电(CONTINUOUS) 最长通电时间100秒

4-6 绝缘等级(INSULATION CLASS): A类(A CLASS)

广东深圳亚欣旋转电磁铁：ABK2624L-24A100 (2)
